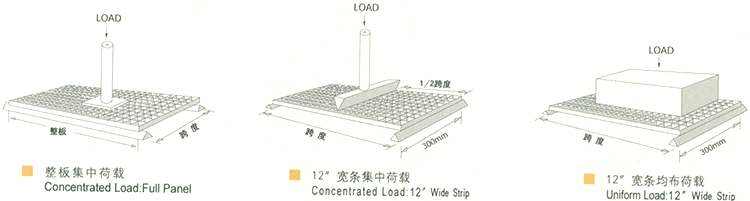

跨度
(mm) |
负载kg |
负载kg |
负载kg |
| 牢固安装 |
标准安装 |
1%挠度安装 |
牢固安装 |
标准安装 |
1%挠度安装 |
牢固安装 |
标准安装 |
1%挠度安装 |
| 25m m |
300 |
--- |
--- |
--- |
234 |
347 |
437 |
2352 |
3384 |
4232 |
| |
450 |
323 |
466 |
582 |
124 |
180 |
225 |
850 |
1224 |
1531 |
| |
600 |
312 |
319 |
399 |
71 |
102 |
129 |
376 |
543 |
678 |
| |
900 |
125 |
180 |
225 |
--- |
--- |
--- |
106 |
154 |
192 |
| |
1200 |
77 |
111 |
139 |
--- |
--- |
--- |
--- |
--- |
--- |
| 38m m |
300 |
--- |
--- |
--- |
540 |
778 |
969 |
--- |
--- |
--- |
| |
450 |
665 |
953 |
1195 |
346 |
498 |
625 |
2986 |
4298 |
5380 |
| |
600 |
511 |
732 |
916 |
207 |
301 |
376 |
1503 |
2161 |
2702 |
| |
900 |
344 |
497 |
622 |
93 |
132 |
167 |
458 |
659 |
826 |
| |
1200 |
214 |
314 |
392 |
--- |
--- |
--- |
190 |
275 |
344 |
| 50m m |
300 |
--- |
--- |
--- |
1014 |
1362 |
1689 |
16275 |
24289 |
30367 |
| |
450 |
908 |
1362 |
1634 |
504 |
738 |
908 |
5468 |
8507 |
10926 |
| |
600 |
836 |
1297 |
1557 |
372 |
568 |
681 |
3231 |
4858 |
5104 |
| |
900 |
631 |
939 |
1127 |
191 |
281 |
352 |
1081 |
1680 |
2001 |
| |
1200 |
413 |
614 |
726 |
110 |
165 |
194 |
460 |
1530 |
1830 |
方便快捷的安装

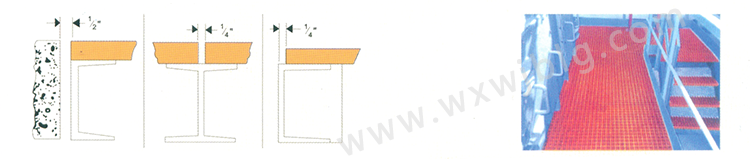

格栅各边支承边建议至少承托40mm,格栅与格栅的对接处应有支承。本公司备有适用于高度为25-38mm格栅的"C"型、"M”型、 "L"型不锈钢固夹和紧固件供应。

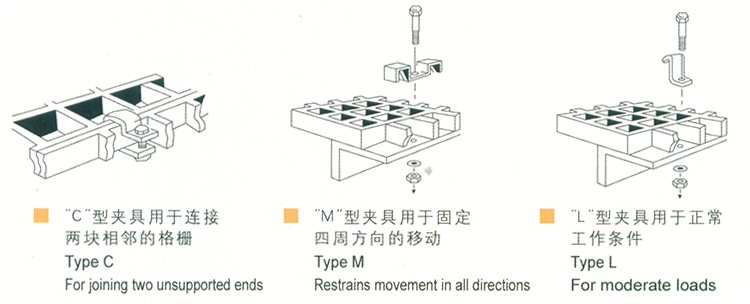

三种不锈钢标准夹具
|
